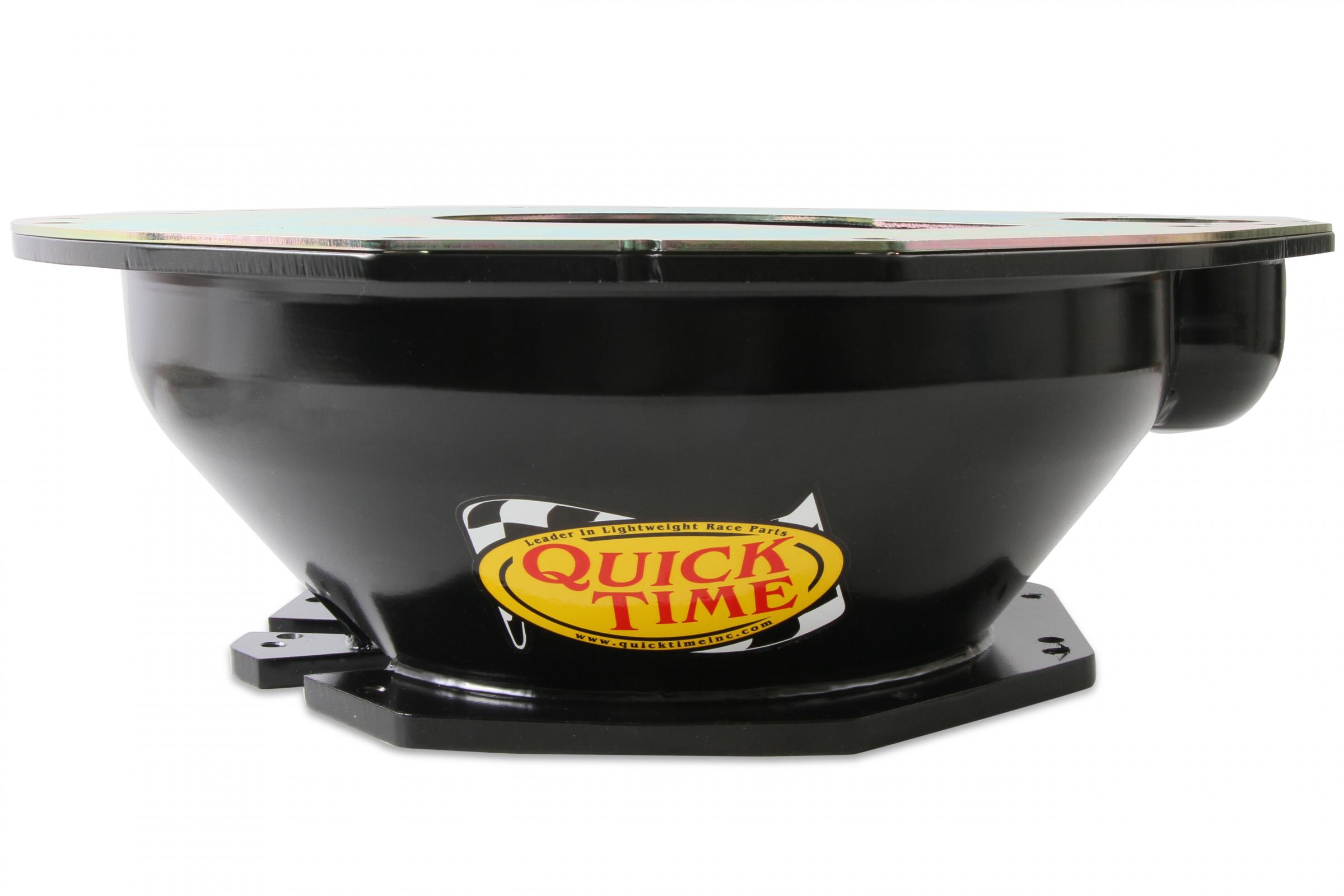

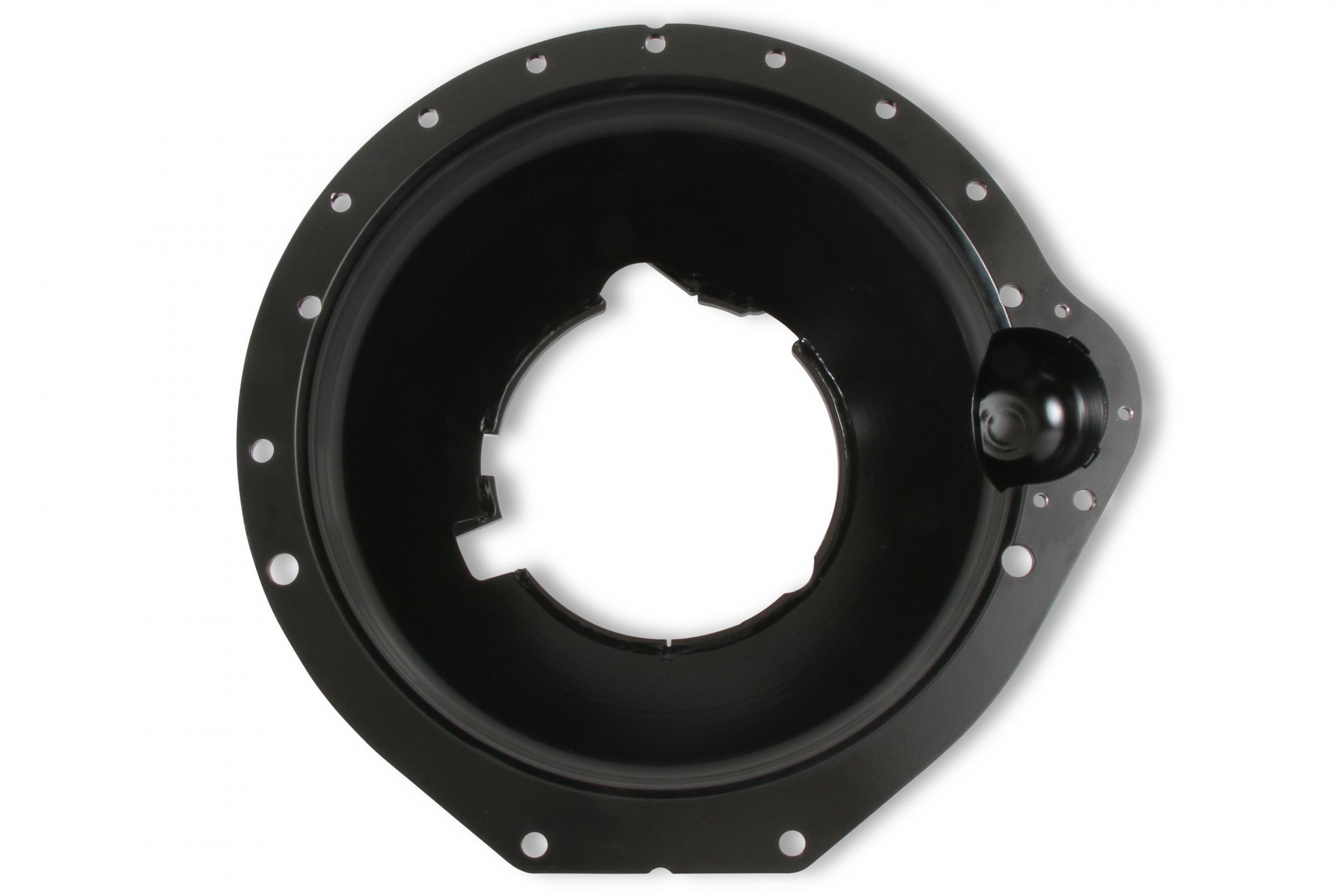

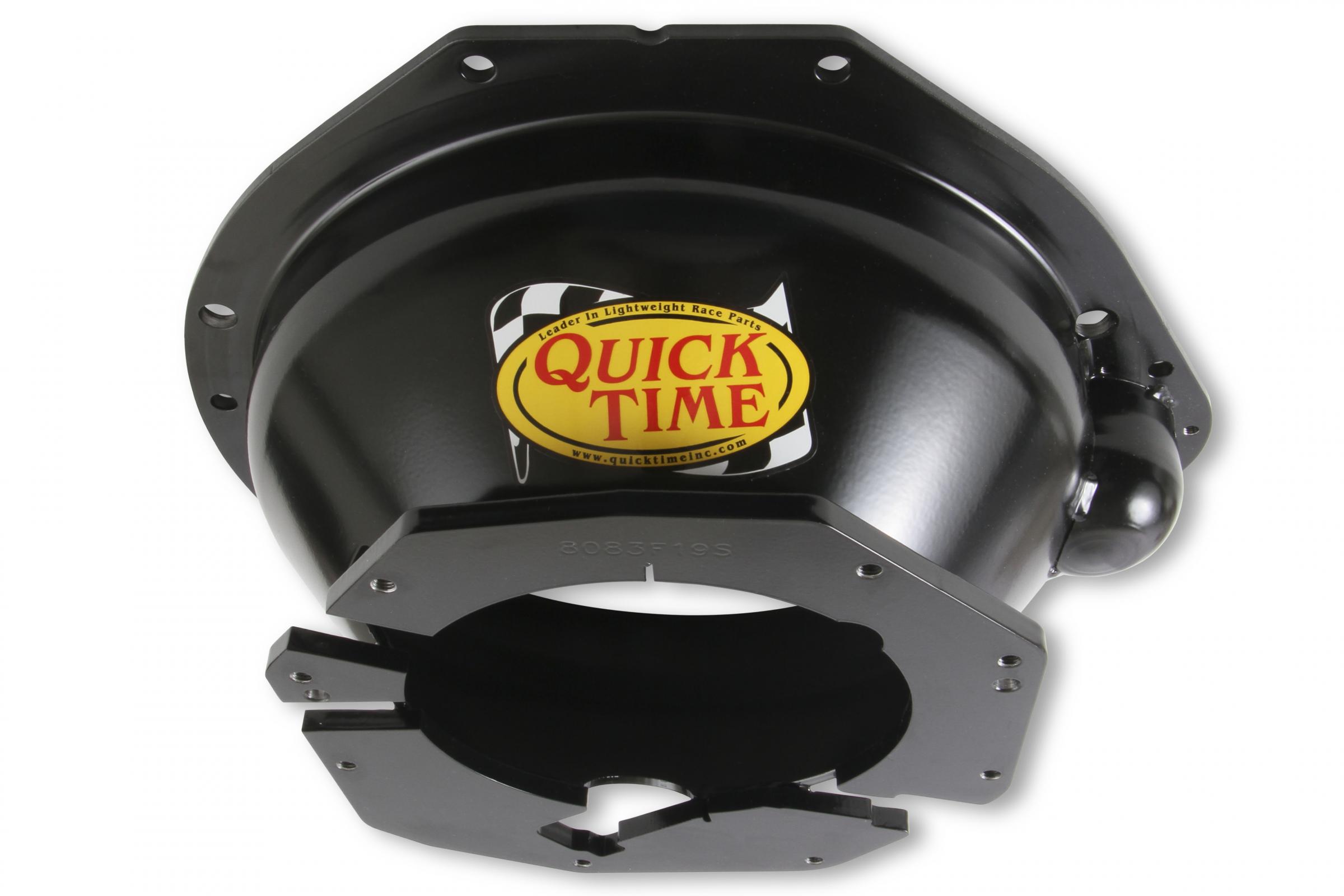

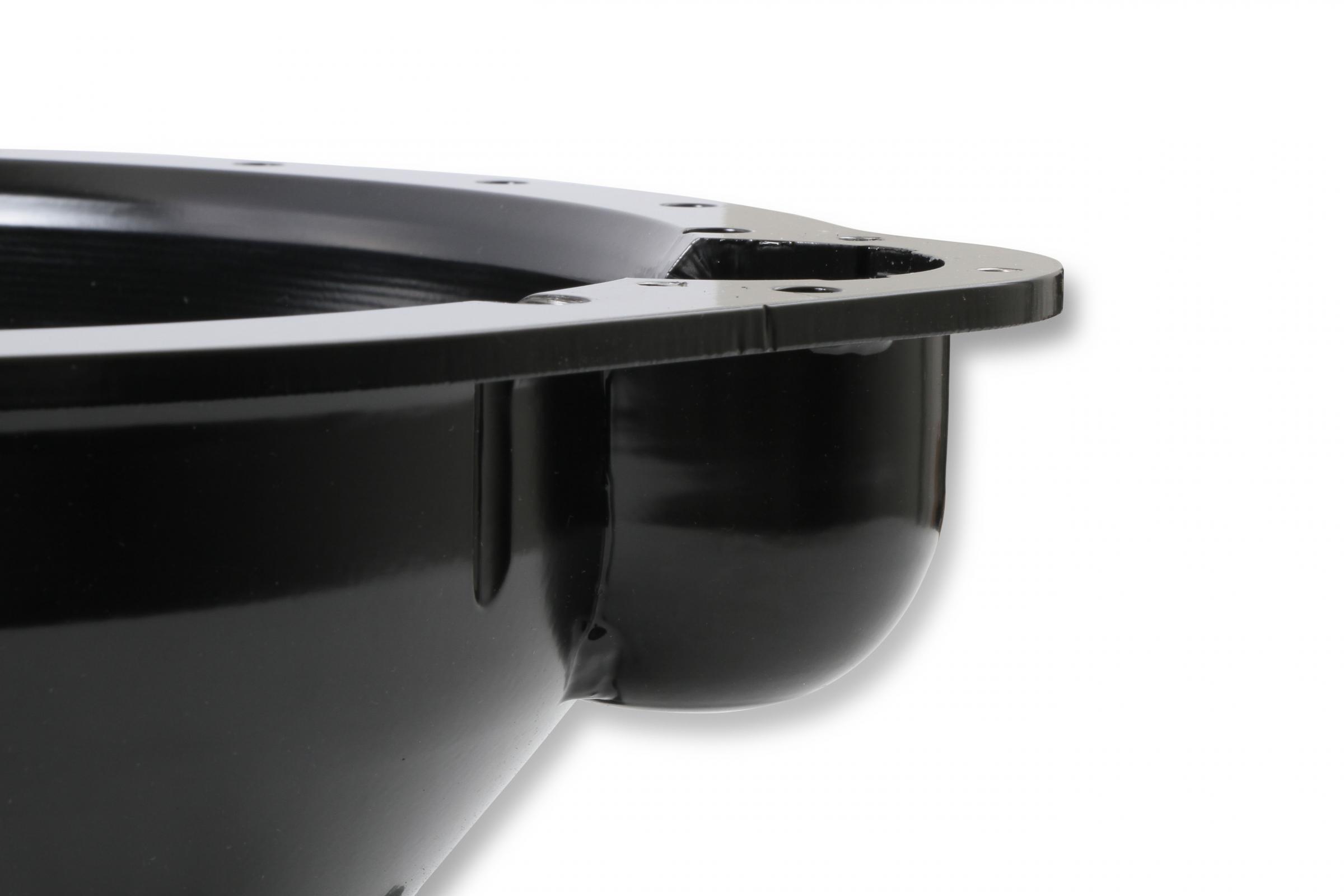

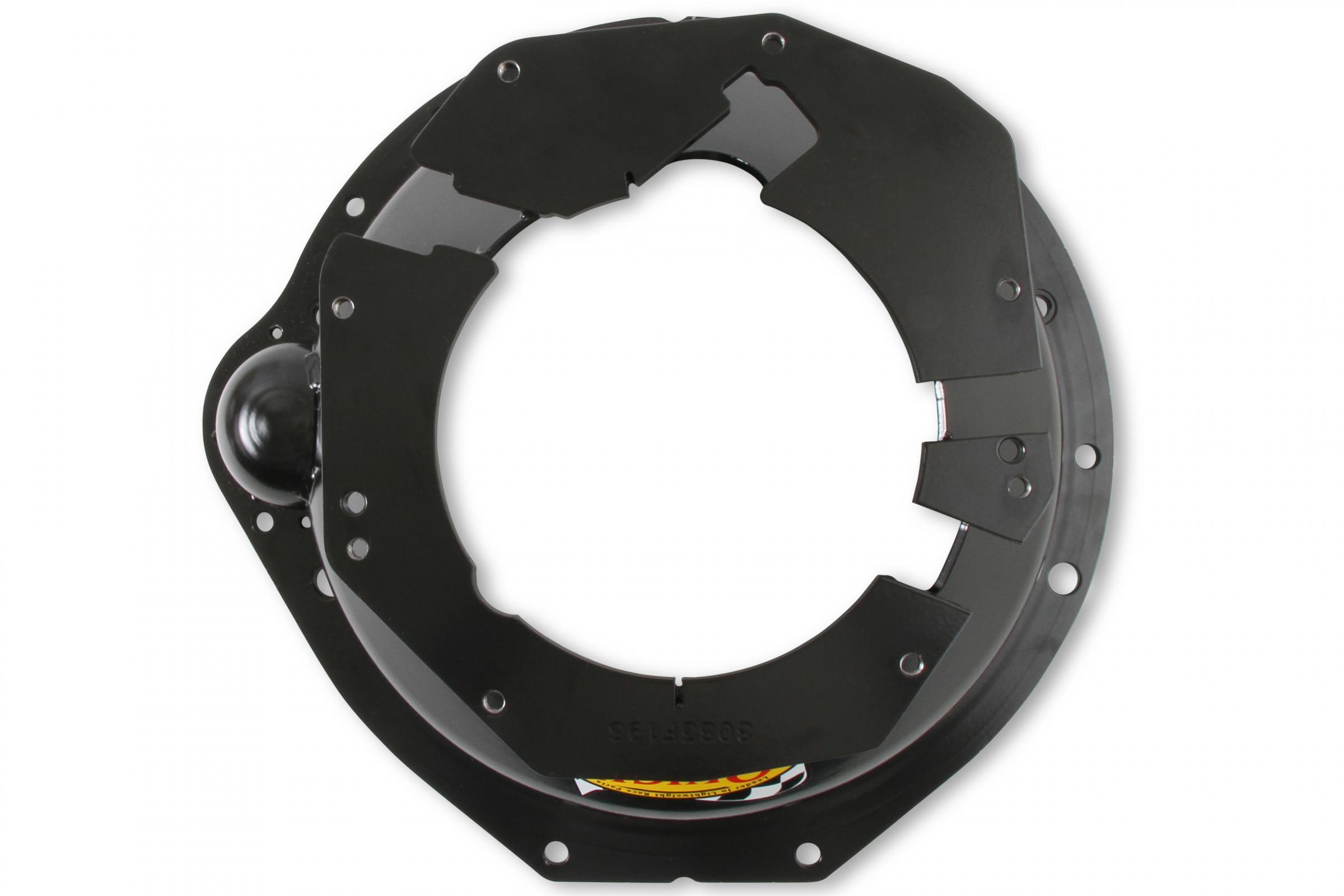

The Quick Time RM-8083 bellhousing connects 4.6/5.0/5.4/5.8/6.2/7.3L Ford Mod/Coyote/Godzilla Engines to standard Ford T-56XL, Magnum, and Magnum XL Transmissions. This bellhousing is S.

F. I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile.

This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material.

This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.

Features and Benefits:

• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available

Details:

• Emission Code: 5
• Material: Steel
• Color: Black
• Flywheel: 164 Tooth
• Part Type: Transmission Bell Housing
• Patented: yes
• SFI Approved: Yes
• Transmission: Ford Magnum XL, T56 Magnum Ford, Ford T56XL
• Transmission Type: Manual
• Certification: 6.1 SFI
• Clutch Operation: Hydraulic
• Engine: Ford 7.3L Godzilla, Ford Mod Motor, Ford 5.8 Modular, Ford 5.0L Coyote, Ford 5.4 Modular
• Engine Make: Ford
• Make: Ford
• Weight: 23 lbs
• Clutch: 11

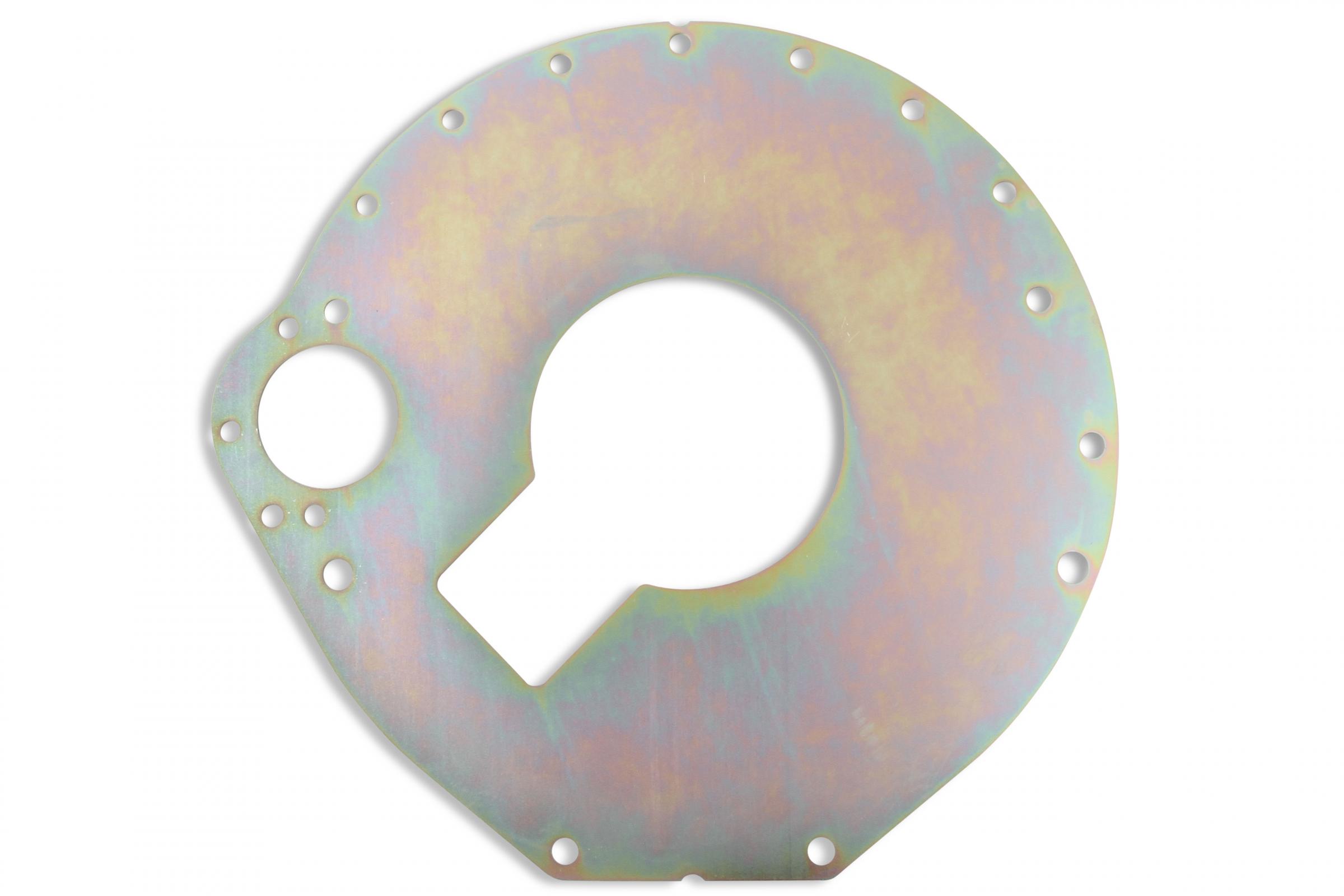

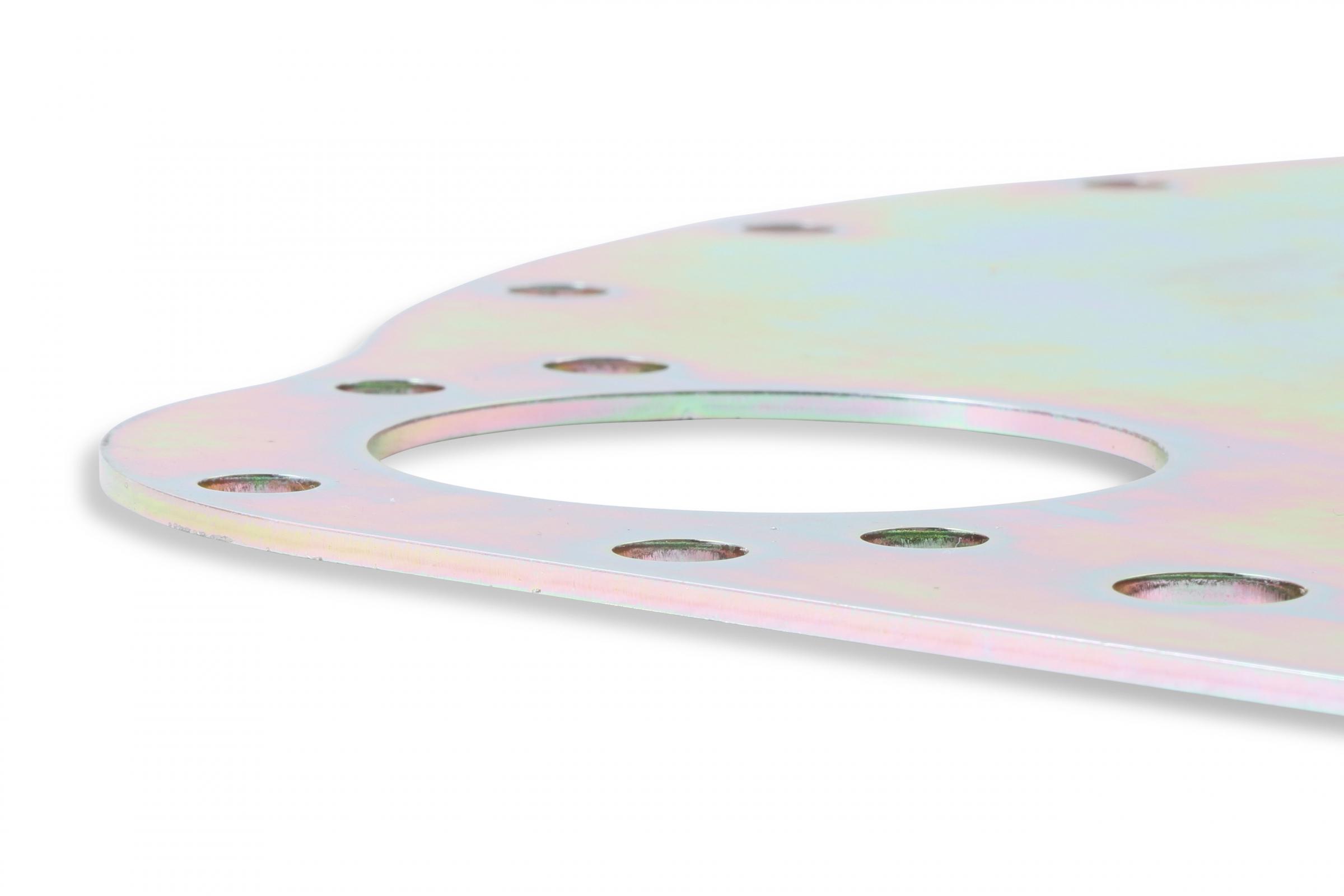

• Engine Plate: RM-8083-C
• Height: 6.210 inch
• SFI Certification: 6.1
• Weight (lb): 23 Pound

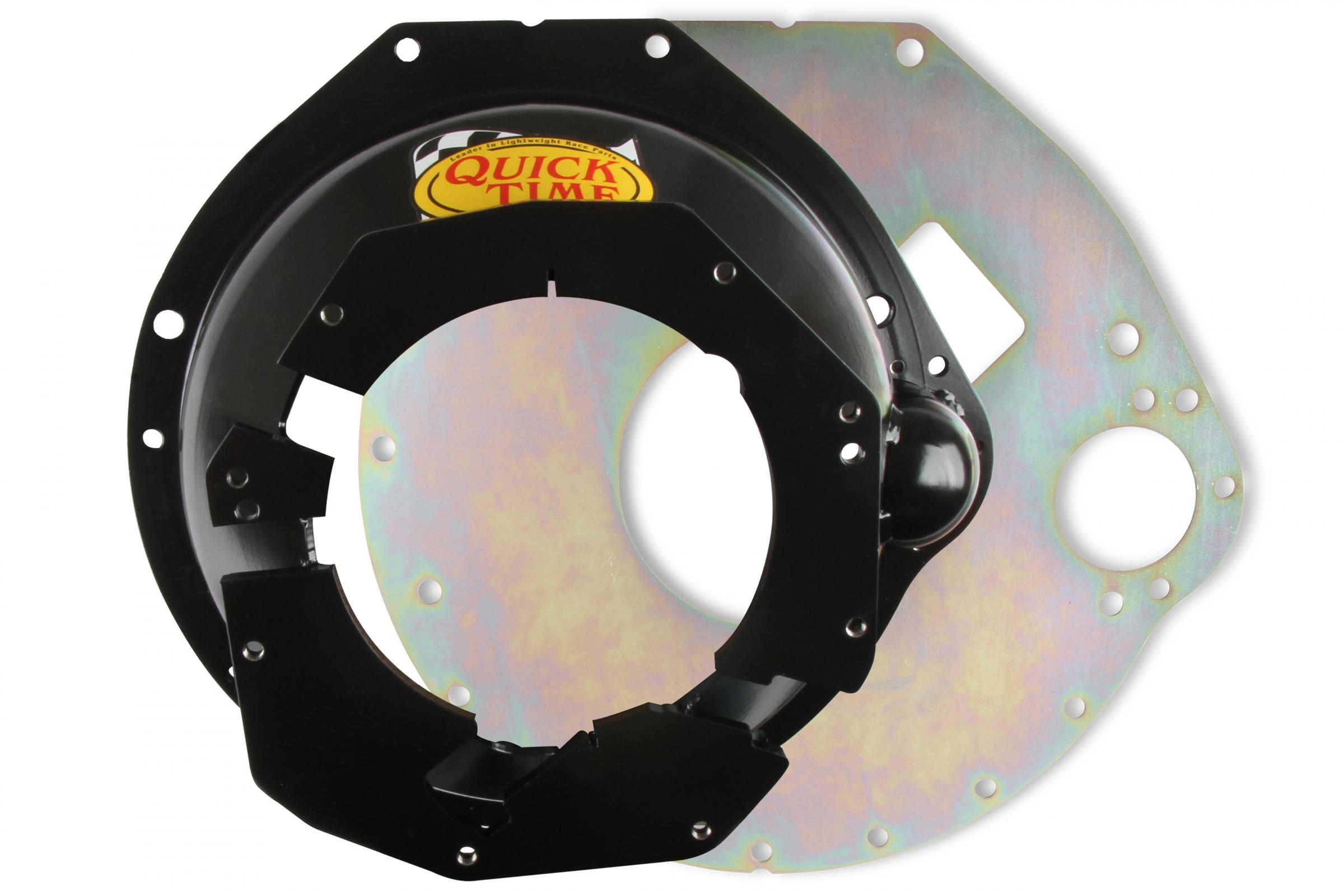

• Included Hardware: Engine plate and grade 8 bolts
