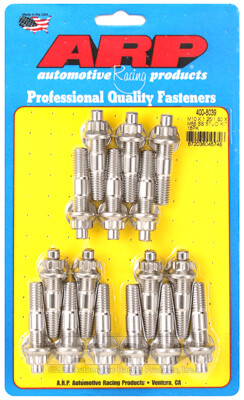

ARP has developed some innovative multi-purpose accessory studs that feature a nut starter nose and a hex-broached tip for ease of installation that can be used for exhaust systems, intake manifold and a host of other uses. The studs are manufactured from a specially alloyed ARP Stainless developed by ARP that is rated at 180,000 tensile strength and are resistant to the rust and corrosion that plagues ordinary fasteners. The studs come with 12-point nuts and flat washers.

Details:

• Material: Stainless Steel
• Finish: Polished
• Kit Style: 16-Pack
• Thread Size: M10 x 1.50 x 1.25
• Thread Length: 17.8mm (0.700 Inch)
• Wrench Size: 12mm
• Collar Diameter: 17.8mm (0.700 Inch)
• Set Qty: 16
• Nut Style: 12-Point
• Stud Type: Standard
• Overall Length: 55mm (2.150 Inch)
• Second Thread Length: 19.1mm (0.750 Inch)
• Nose Length: 6.4mm (0.250 Inch)
• Min Grip Length: 11.4mm (0.450 Inch)
• Grip Diameter: 10.0mm (0.392 Inch)
• Broach Size: 4mm
• Package Type: Skin
• Kit Type: Stud

Fitment Notes:

• Application: Multi-purpose accessory stud, M10 x 1.50 x 1.25, 55mm OAL - exhaust systems, intake manifold and other uses
