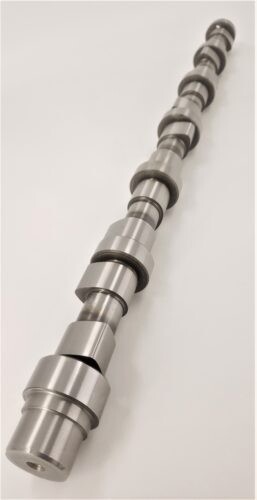

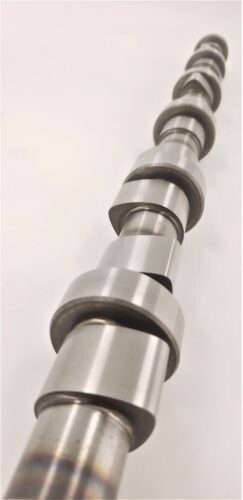

The 207/220-110 camshaft is designed for high-performance Cummins builds that need strong power through the upper RPM range. It performs best from approximately 2,000 to 4,800 RPM and should be installed on a 99 - 101 Degree intake centerline. This cam is an excellent choice for engines equipped with cylinder heads that continue to flow efficiently at higher valve lift.

It is best suited for combinations with increased compression, high-flow cylinder heads, larger turbochargers, and supporting fuel-system upgrades. For automatic-transmission applications, a 2,500 RPM or higher stall converter is recommended. The ideal stall speed may vary depending on turbocharger size, injection timing, vehicle weight, and overall engine setup.

Upgraded valve springs and pushrods are required. This is an aggressive performance camshaft intended for properly built engines with adequate piston clearance and supporting modifications.

Details:

• Sold As: Each
• Universal: No
• Vehicle Type: Truck
• Liter: 5.9L, 6.7L
• Fuel Type: Diesel
• Valve: 12-Valve, 24-Valve
• Material: Steel
• Duration at .050 Inch: 207 Degree Intake / 220 Degree Exhaust
• Lift: .3600 Inch Intake / .3600 Inch Exhaust (Cam Lift), .4968 Inch Intake / .4824 Inch Exhaust (Valve Lift)
• Lobe Separation Angle: 110 Degree
• Intake Centerline: 99 - 101 Degree
• RPM Range: 2,000 - 4,800 RPM

Fitment Notes:

• Fitment: 1989-2007 Dodge Ram 5.9L Cummins and 2007.5-2018 Ram 6.7L Cummins flat-tappet engines; verify piston-to-valve clearance and supporting valvetrain requirements.
• 24-valve engines: Minimum .080 Inch valve reliefs required
• 12-valve engines: Minimum .100 Inch valve reliefs required
• Proper piston-to-valve clearance must always be verified during engine assembly.

Applications:

• High-RPM street and competition builds
• Ported or high-flow cylinder heads
• Higher-compression engines
• Larger single or compound turbocharger combinations
• Engines with upgraded fueling and valvetrain components
