2019-2024 Cummins Mach 1 Stealth Calibrated Power

SKU

CPS200257-FWQS

List price

$3,699.00

Price

$3,699.00

Description

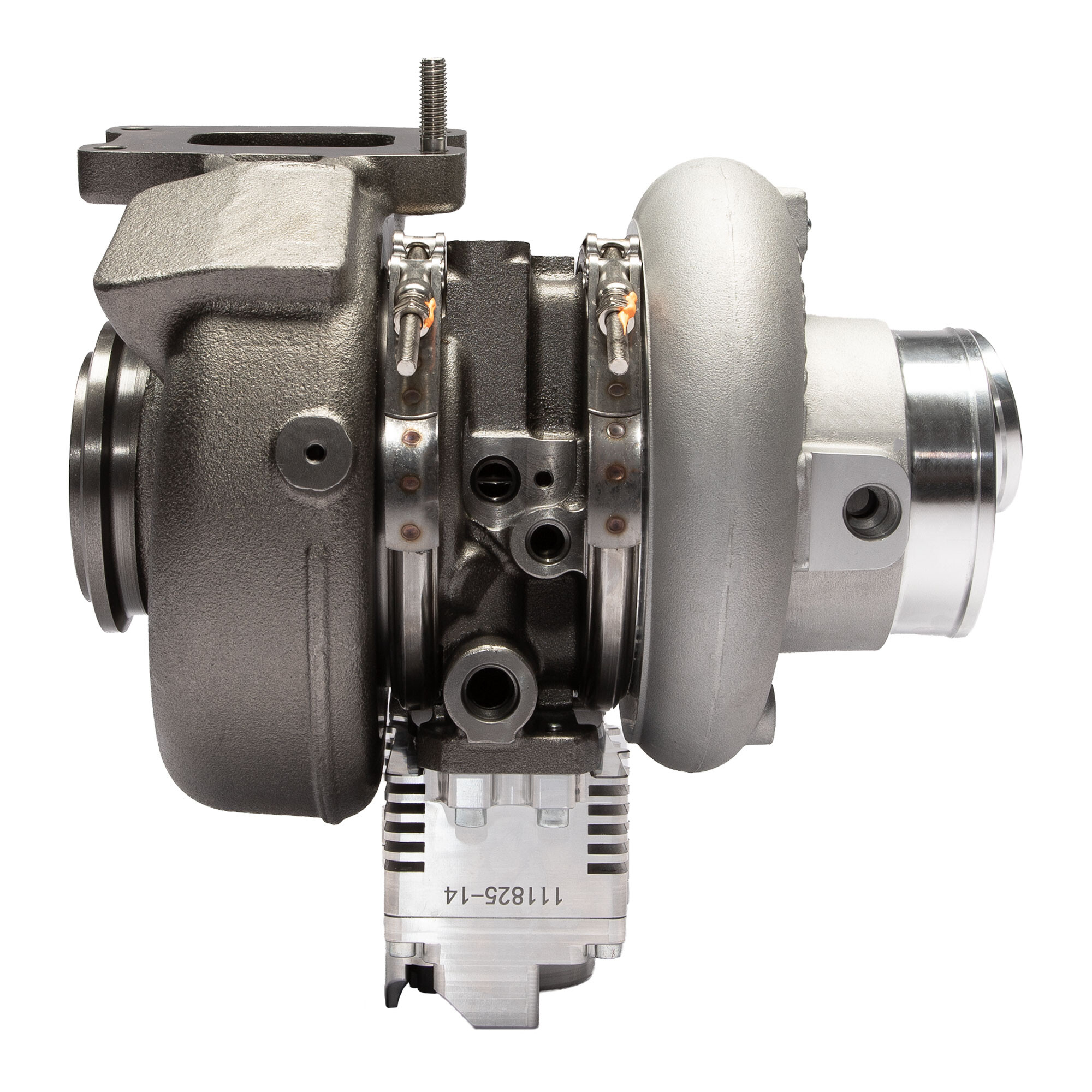

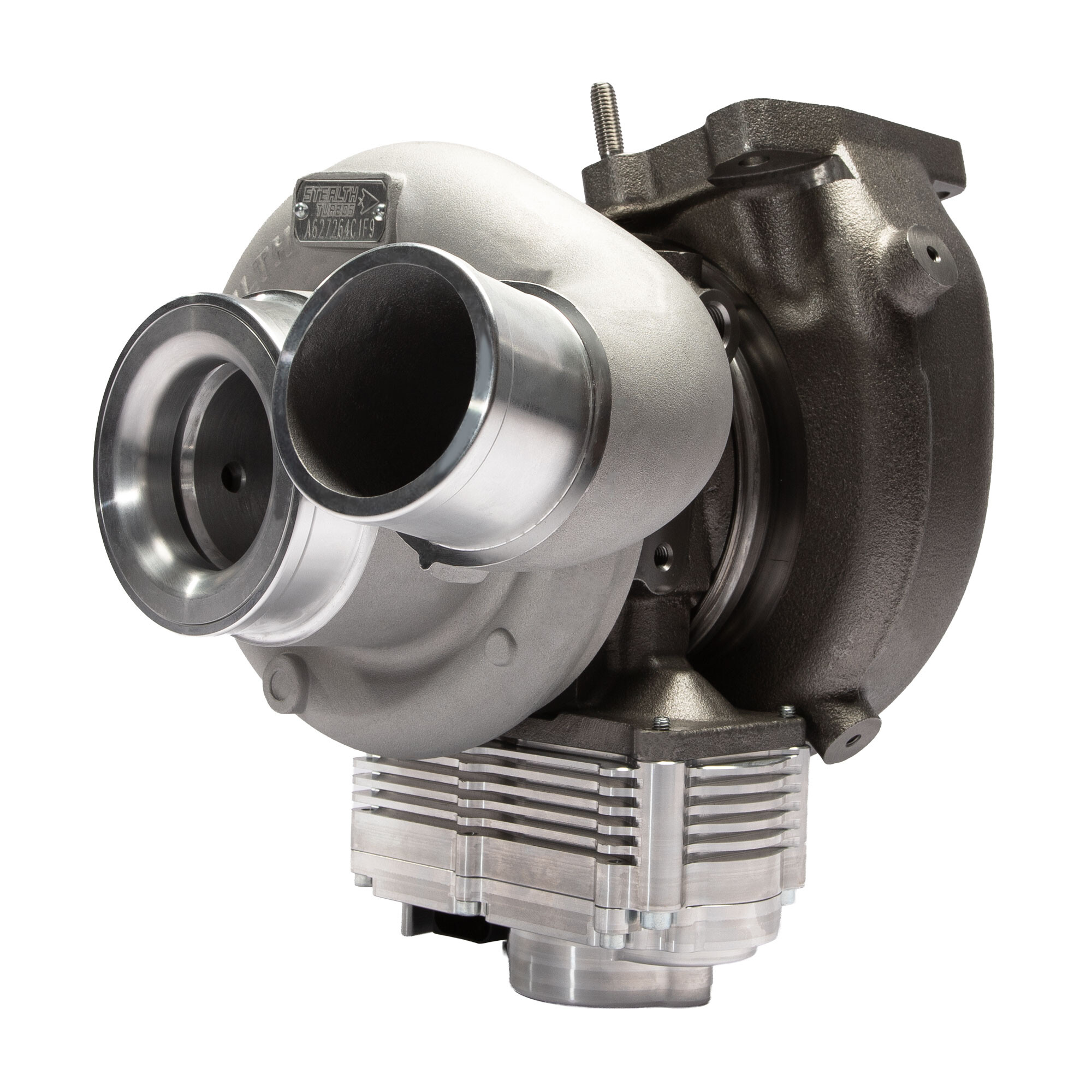

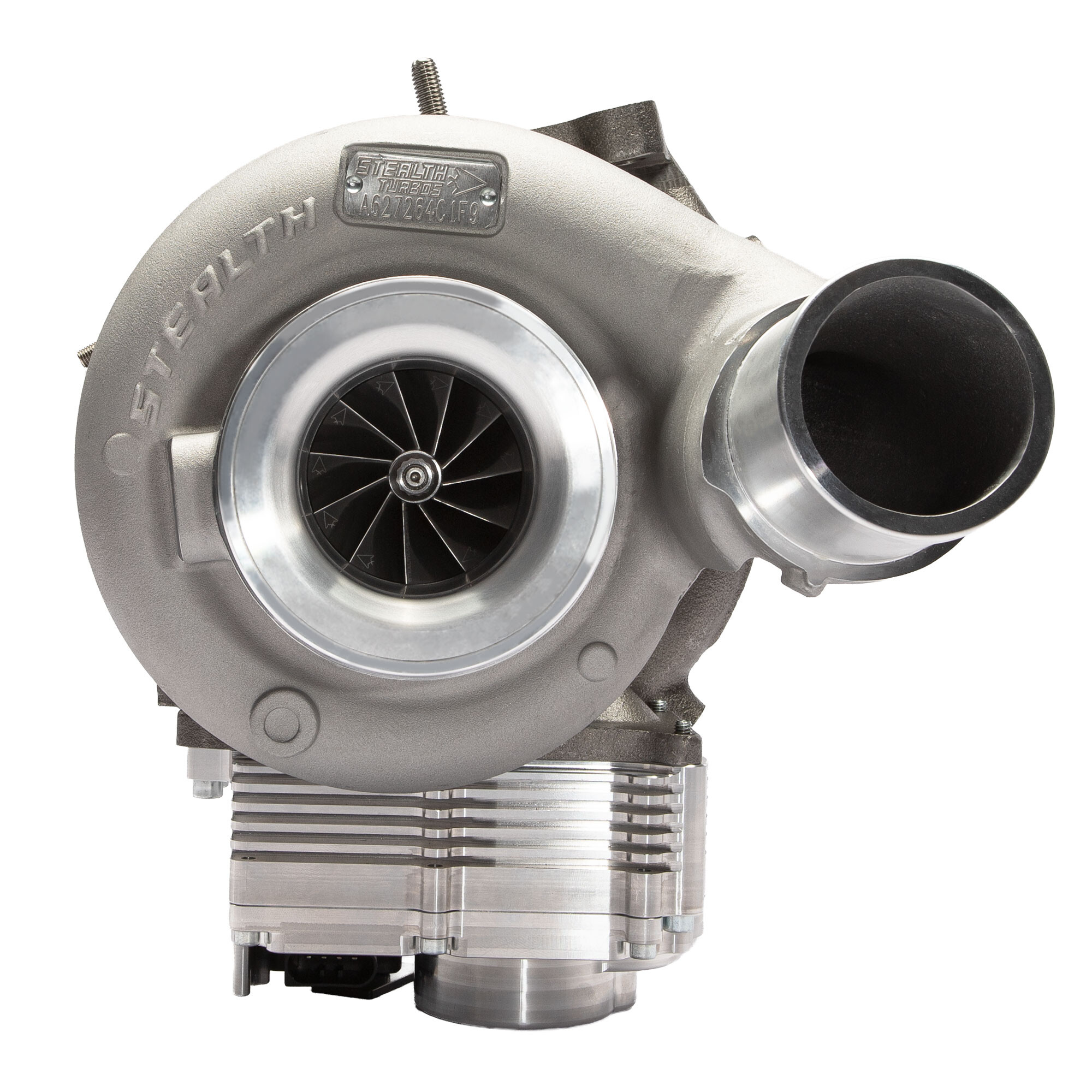

The HE300VG Stealth Mach 1 64 for 2019-2024 6.7L Cummins CMF is the perfect balance of power, drivability, and reliability. With an upgraded compressor wheel, turbine, and variable geometry nozzle assembly this turbo has the ability to move 30 percent more air through it than stock. All while providing a better drive/boost pressure ratio than the stock charger.

This means not only do you get more power, you also get an extremely fast spool up, comparable to that of the stock charger. If you tow or haul heavy loads on a regular basis this is the turbo for you. Quick spool up means taking off from stops is a breeze and the ability to retain your factory exhaust brake makes braking easier and saves your brake pads.

Plus our upgraded turbine wheel and HFV technology help to lower EGTs which gives you even more confidence when towing a heavy load up a steep grade. To top it all off this turbo comes with a brand new ITI Upgraded Billet turbo actuator to ensure proper operation.

Airflow to Support up to 700+ RWHP:

Tested up to 600 RWHP with stock emissions equipment and tuning
30 percent more airflow available compared to stock
41+psi boost capable at sea level

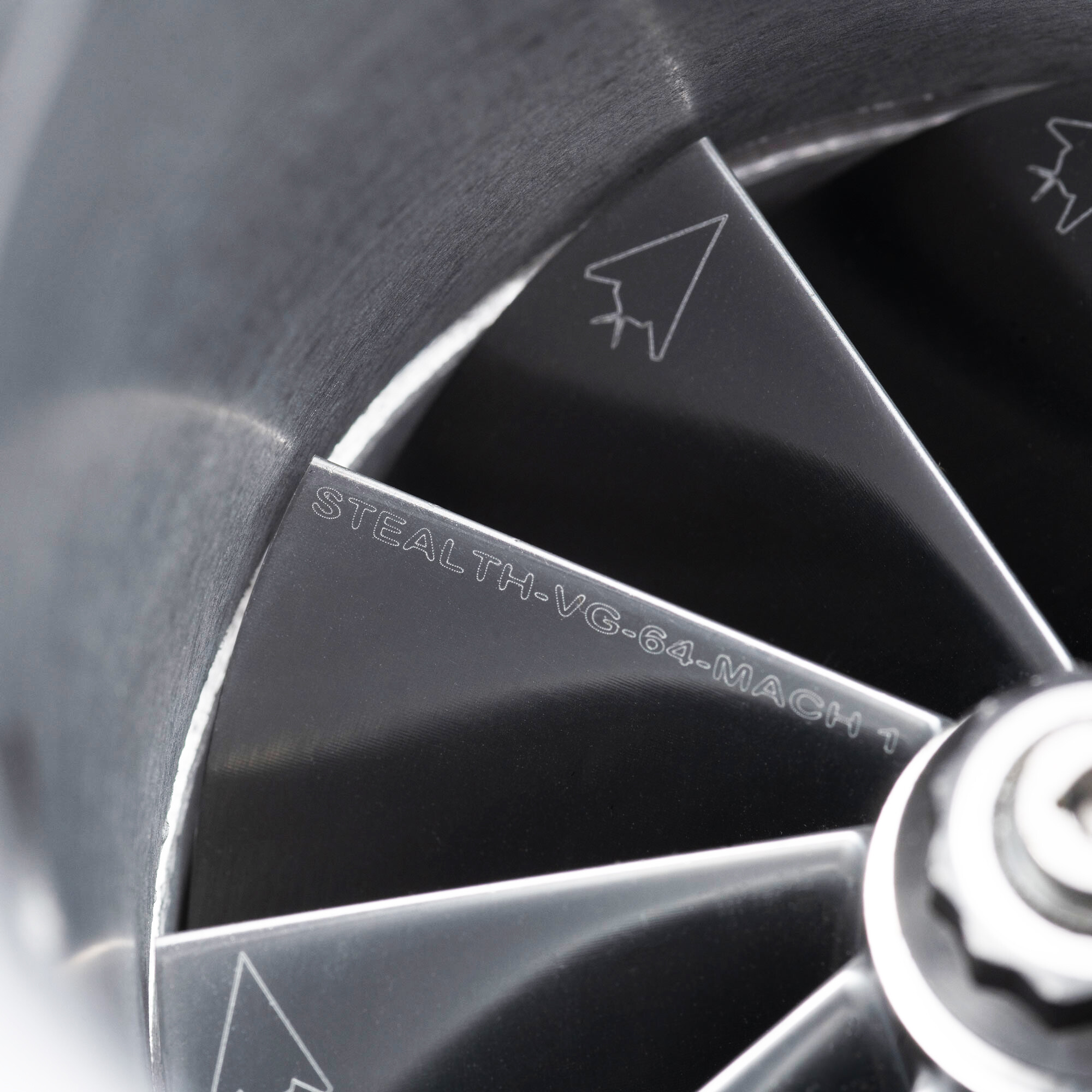

Custom Billet Compressor Wheel:

64mm, 11-Blade Wheel eliminates surge while towing
Made from the highest quality 7075 Aluminum
Tow without any risk of surge (even while lugging)
Lightweight and high strength
Expertly balanced to ensure longevity

Custom Oversized Turbine Wheel:

25 percent larger inducers
30 percent Larger exducers
Custom higher efficiency blade design
Low drive pressures at high load
Better EGT control and lower EGT's
Distinct Stealth exhaust sound

HFV (High Flow Vane) Technology:

Only found in select Stealth turbochargers
Custom, billet vanes and nozzle ring assembly
Exclusive design produced in-house specific to this application
Taller and wider vanes match larger turbine to provide superior high-load efficiency
Retain factory exhaust brake and quick throttle response

Brand New Parts and Electronics:

ITI Upgraded Billet AutoSynq Actuator. Self-Calibrating Software with Full Vane Sweep
No dealer programming or re-learn required for installation. Full sweep operation helps keep turbine vanes clean. Heavy Duty Brushless Motor
Quicker response, higher precision and longer life than OEM brushed style motors. Enhanced Boost Control
Maintains stable and precise vane control during towing, tuned operation, and high drive-pressure conditions. High Strength Billet Housing
Improved structural integrity and durability compared to OEM style actuators. Retains proper coolant flow for thermal management in high heat / high load conditions. No Tune Required
No Core Charges

This Turbo Is Designed for You If You:

Want superior towing performance
Want to make more power and still retain a quick spool up
Daily drive your truck
Want more power when you need it, but still want excellent street-ability
Just want to replace your stock turbo with something more durable and offers better performance

The Stealth Mach 1 64 HE300VG has undergone testing to demonstrate that it complies with federal emissions regulations. This testing provides the reasonable basis required by the standards defined by the Epa.

Features and Benefits:

Airflow to Support up to 700+ RWHP
Tested up to 600 RWHP with stock emissions equipment and tuning
30 percent more airflow available compared to stock
41+psi boost capable at sea level
Custom Billet Compressor Wheel - 64mm, 11-Blade Wheel eliminates surge while towing - Made from the highest quality 7075 Aluminum - Tow without any risk of surge (even while lugging) - Lightweight and high strength - Expertly balanced to ensure longevity.
Custom Oversized Turbine Wheel - 25 percent larger inducers - 30 percent Larger exducers - Custom higher efficiency blade design - Low drive pressures at high load - Better EGT control and lower EGT's - Distinct Stealth exhaust sound.
HFV (High Flow Vane) Technology - Only found in select Stealth turbochargers - Custom, billet vanes and nozzle ring assembly - Exclusive design produced in-house specific to this application - Taller and wider vanes match larger turbine to provide superior high-load efficiency - Retain factory exhaust brake and quick throttle response.
ITI Upgraded Billet AutoSynq Actuator - Self-Calibrating - No dealer programming or re-learn procedures needed.
No Tune Required
No Core Charges
