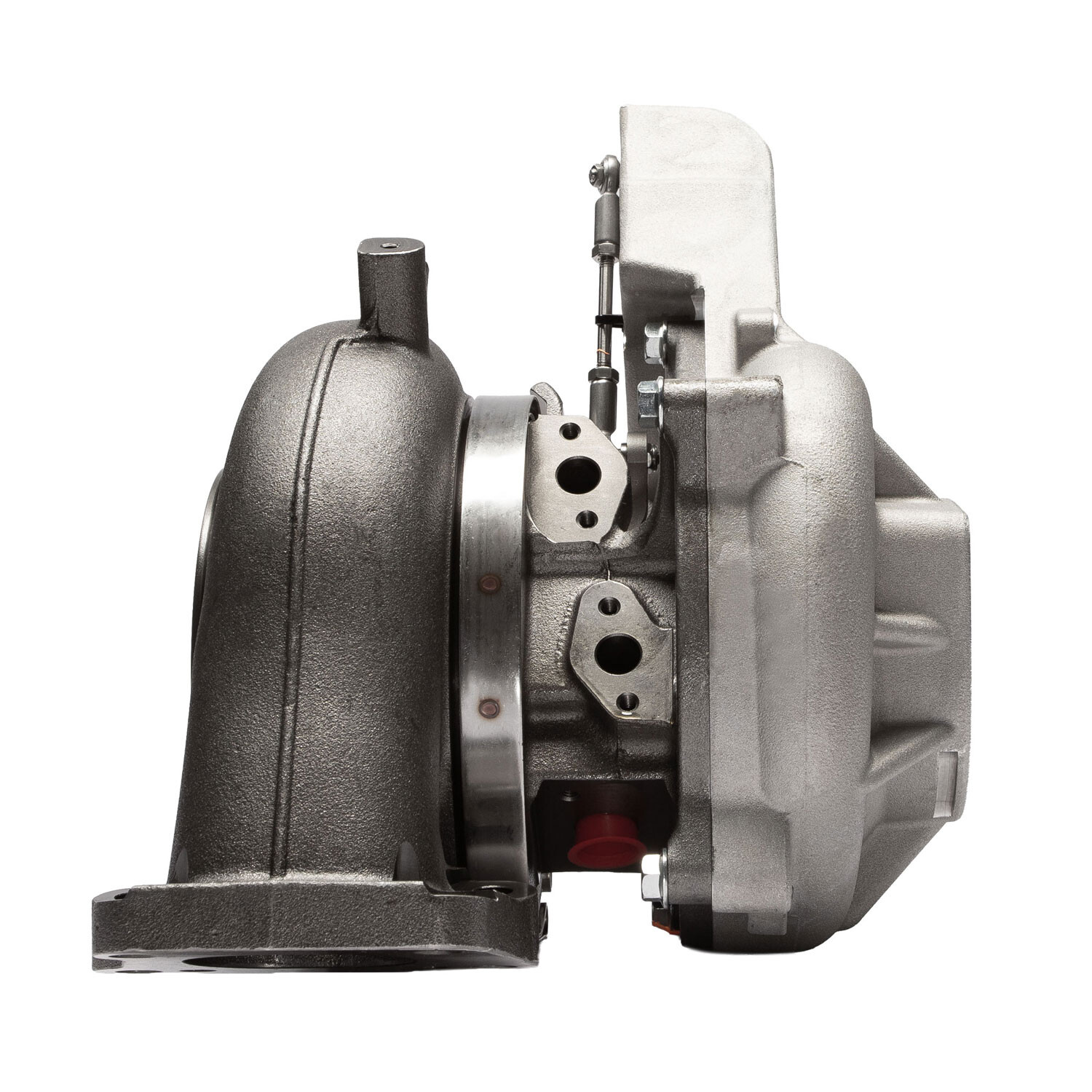

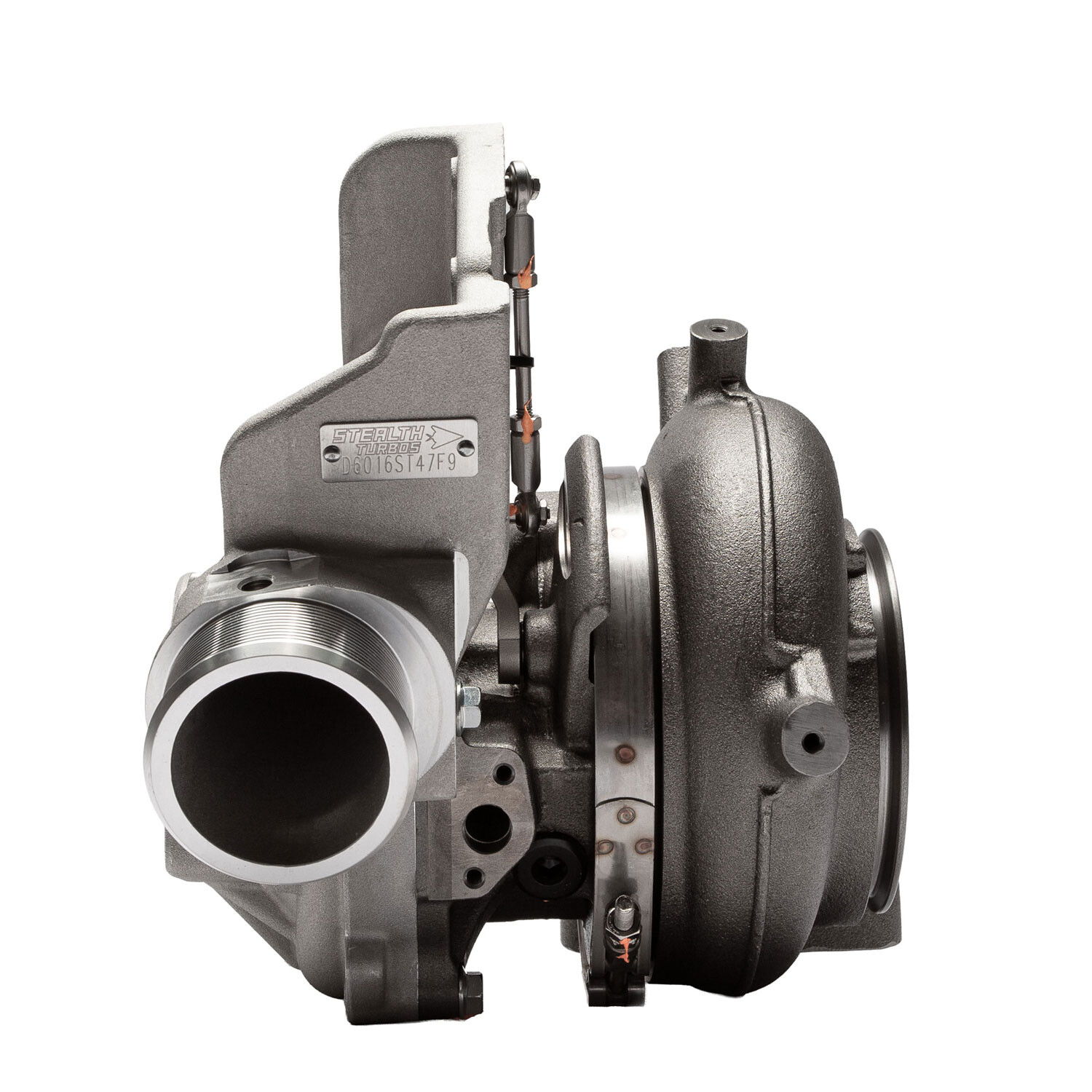

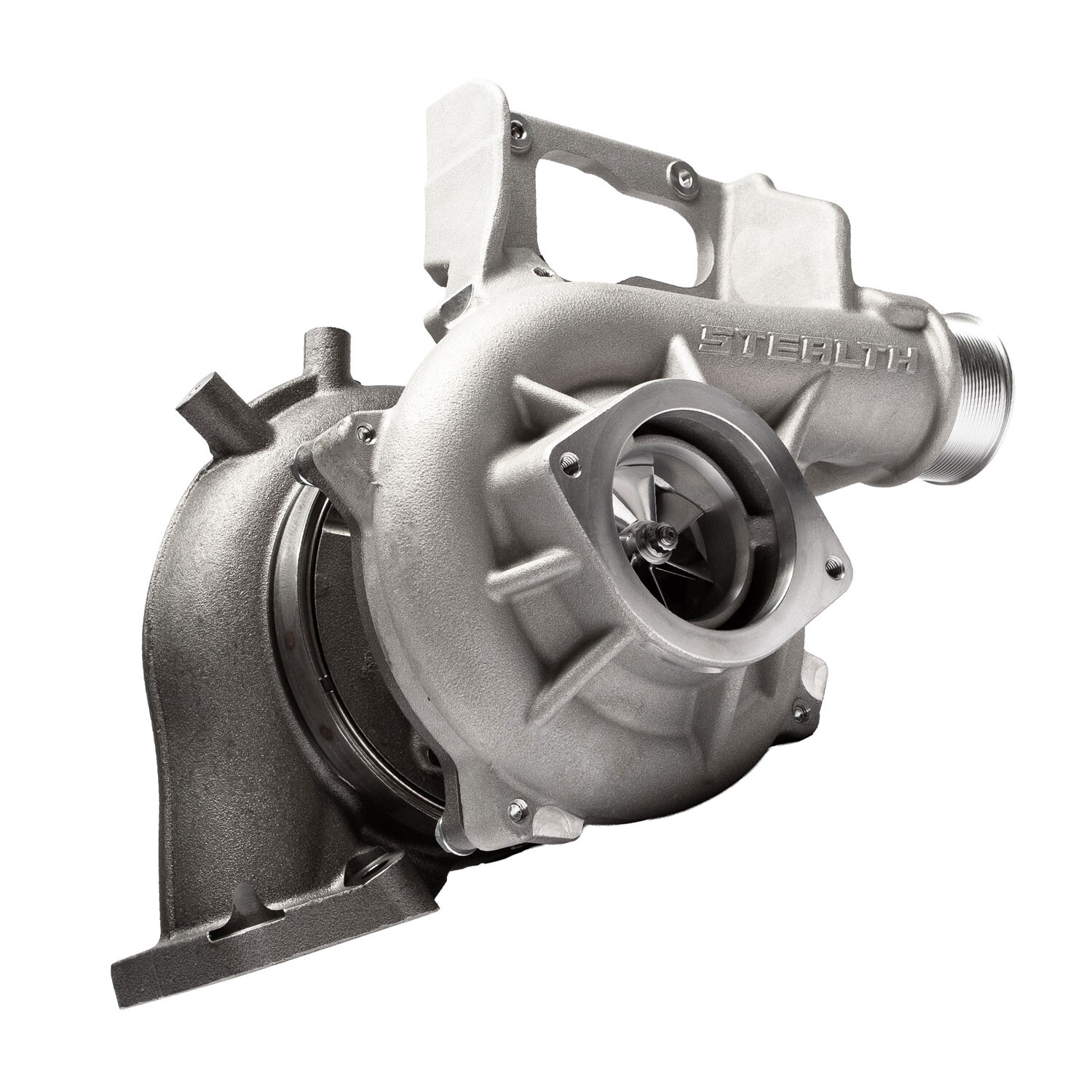

2017-2023 L5P Duramax STR Stealth Calibrated Power

SKU

CPS200143-FWQS

List price

$2,149.00

Price

$2,149.00

Description

There's nothing better than upgrading your parts instead of just replacing them. That's why the Stealth STR is the perfect upgrade for your 2017, 2018, or 2019 Chevy Silverado/ GMC Sierra 2500/3500 L5P Duramax. It combines the affordability of a stock turbo replacement with some of the best upgrades you can get in a drop-in L5P charger.

Whether you're looking for more power or simply a do-it-all kind of turbo with some added durability the STR delivers.

63mm Air Grabber Compressor Wheel:

Air flow to support 625rwhp (dynojet) with emissions in-tact
7-blade design provides higher airflow than stock
63mm sizing for peak weight to efficiency optimization
Lighter wheel design provides unmatched spool-up
Recessed Super Back design provides added weight reduction
Featuring the latest advancements in compressor wheel design
Air Grabber technology for even more additional airflow
Made out of aerospace-grade billet aluminum
Peak boost of 40+psi

65mm High Flow Inconel Turbine Wheel:

65mm exducer compared to 62.5mm Stock
Noticeable turbo whistle
9-blade design provides higher flow and lower EGTs under load
Excellent boost to drive pressure ratio
Better durability than stock

Rotating Assembly (Compressor and Turbine Wheels):

6 percent lighter than the stock rotating assembly
Provides lightning fast spool-up
Boosts turbo efficiency and lowers drive pressures
Precision balanced in-house

Ported Exhaust Housing:

Larger exhaust port opening to match larger turbine
Better exhaust gas flow post-turbine
Less back pressure

Stealth Turbo Benefits:

Absolutely no core charges
Brand new parts and accessories
Brand new actuators available
1-year warranty on all of our turbos

This Turbo Is a Great Fit If You:

Have reliability and performance as your top priorities
Want immediate response and great daily drivability
Have a Box Tuner or Custom Tuning installed on your truck
Want to make 625+rwhp or less
Tow with your truck often
Have a completely stock truck (this turbo does not require tuning)
Need a new replacement turbo for your L5P

Do You Need an Actuator? If you're wondering whether or not you should buy an actuator to compliment your Stealth turbo, allow us to share our thoughts. The L5P actuator has a very low failure rate in the field.

The fact that it's well-cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way. Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.

Note: This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty. Damage caused as a result of non-stock vane position tuning modifications will be the responsibility of the owner, not Calibrated Power Solutions Inc.

Features and Benefits:

Proven to support up to 625 RWHP with stock emissions
Extra airflow to make 80-100rwhp over 'Tune only' L5P
Works great with box tuners, custom tuning, or without tuning
Lower average EGTs and better overall EGT control
Built to last with more durable components
Lighter rotating assembly than stock - Lightning fast spool-up and immediate throttle response
Loud turbo whistle from 9-blade turbine
Zero surge even when towing heavy loads
Brand New Parts - No core charges
