2017-2023 L5P Duramax Mach 1 Stealth Calibrated Power

SKU

CPS200275-FWQS

List price

$3,149.00

Price

$3,149.00

Description

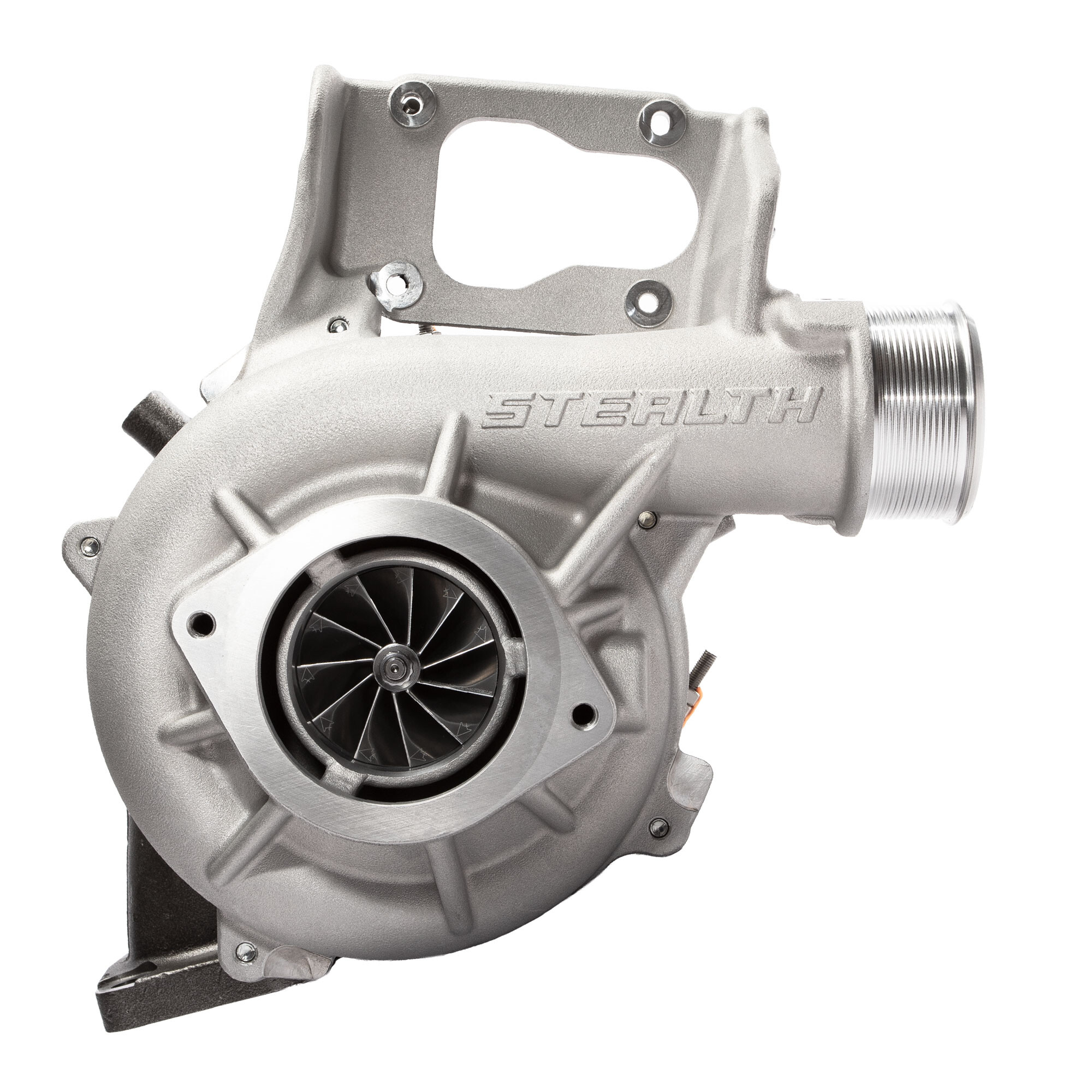

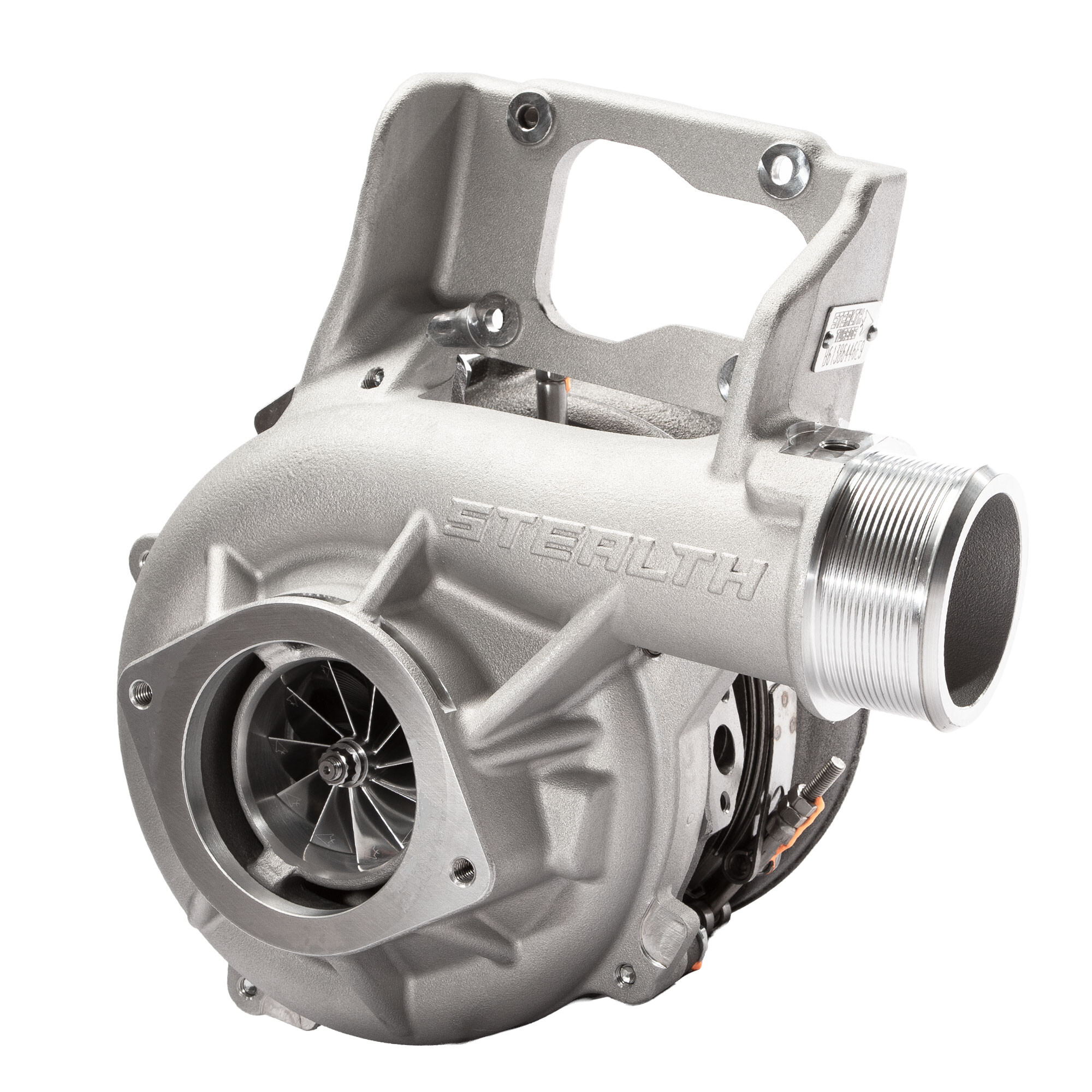

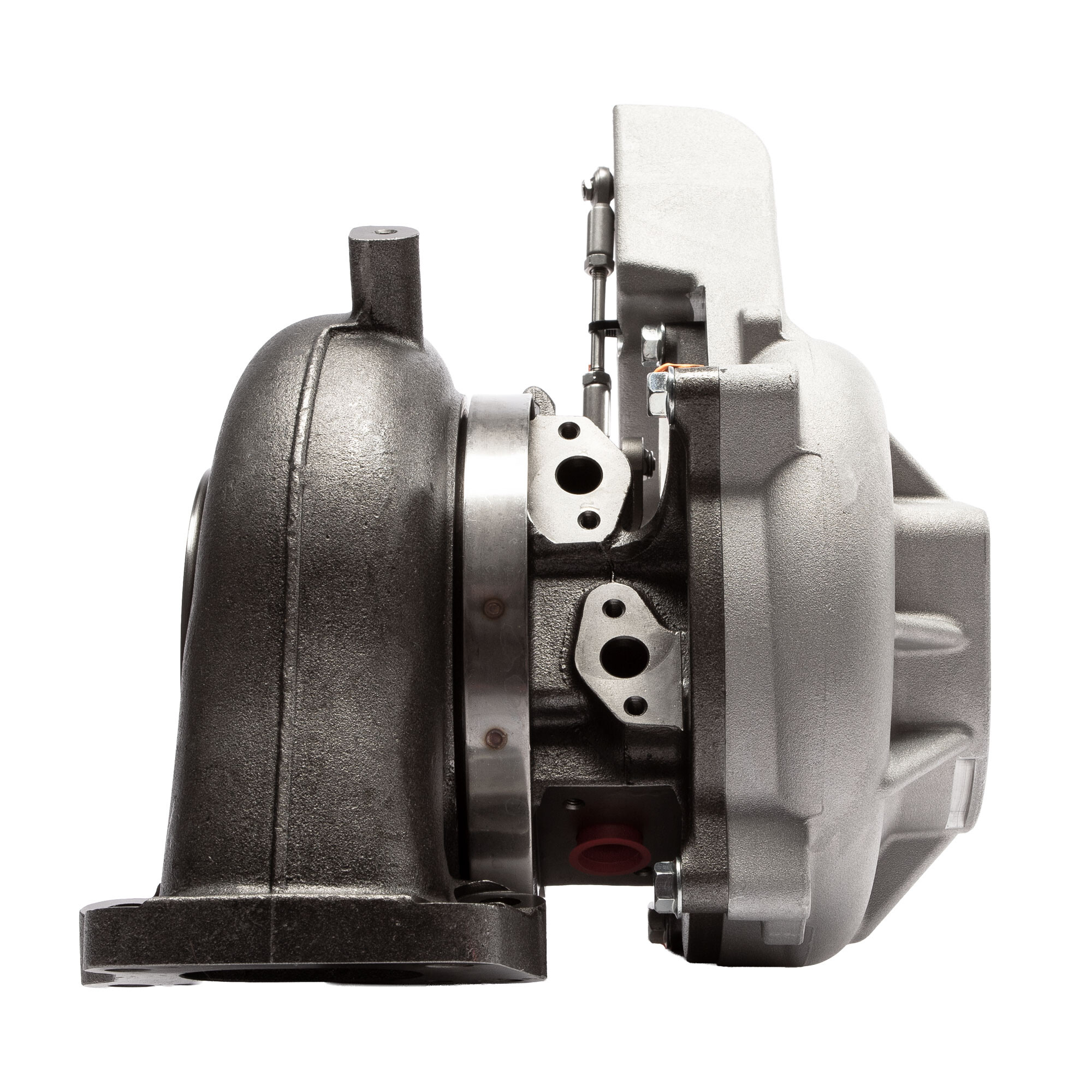

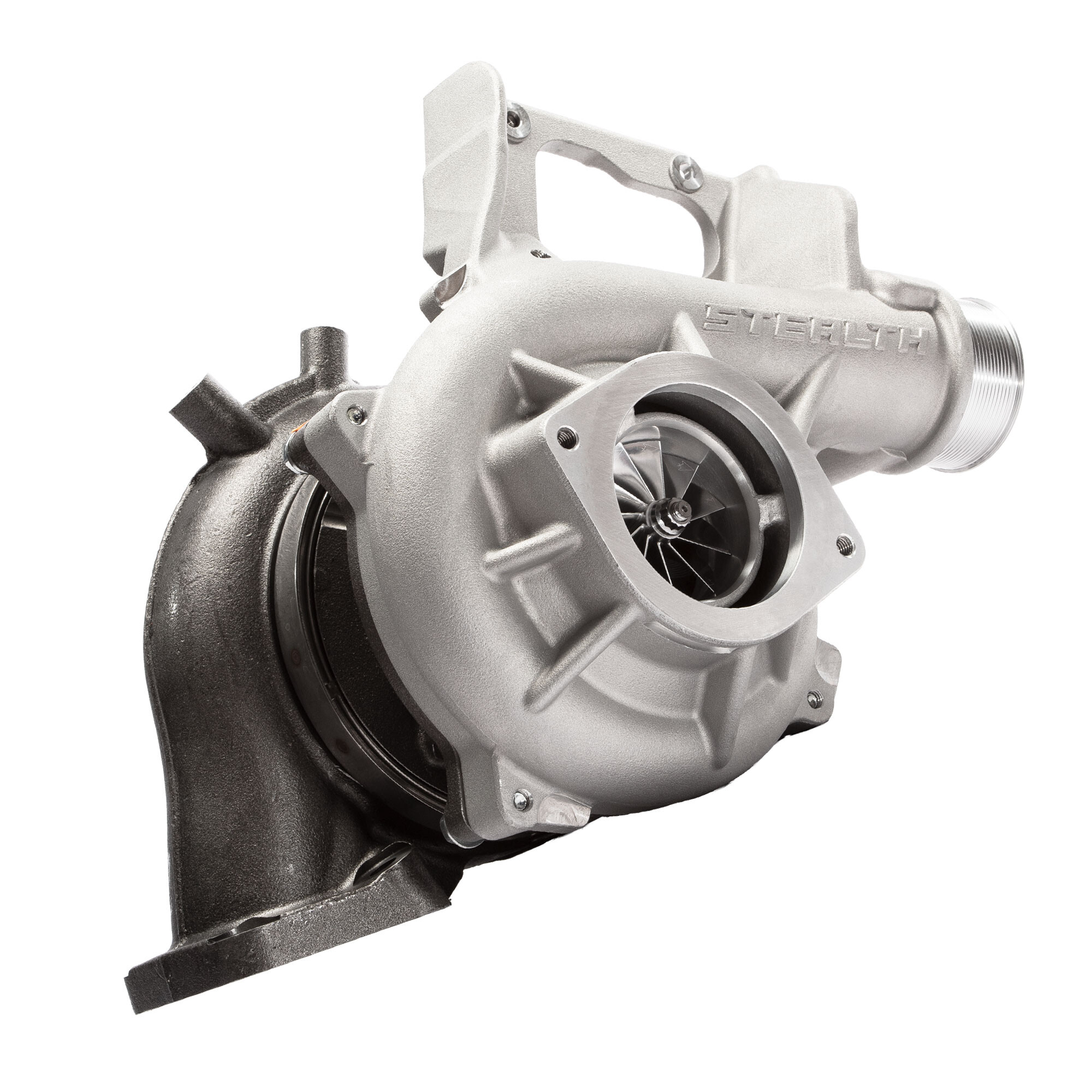

The Stealth Mach 1 64 Turbo - L5P is an easy to install 700 rear wheel horsepower capable upgrade that spools up quickly, controls EGT's under heavy load, allows to turbine braking during towing scenarios, and kicks ass when leaned on. Building this line of Stealth's meant designing a turbo that would be safe to tow with, fun to drive every day and perform at competitions. If you think street-able, clean, stock-appearing power is cool then this is the turbo for you!

700+ RWHP verified in competition applications with extensive supporting mods. Up to 650 RWHP with stock emissions equipment and basic supporting mods. Fits 2017-2023 Duramax L5P.

Also compatible with 2019+ L5D. 100 percent Stock Appearing Drop-In - Completely bolt-on (fits just like your factory turbocharger). High Flow Vane Technology - Calibrated Powers' Proprietary Custom Nozzle Ring Assembly (Vane Cage and Vanes) - Taller and wider vanes match larger turbine to provide superior high-load efficiency - Low drive pressures at high load - Improved efficiencies vs. stock to help with better EGT control.

10 blade turbine wheel - produces distinctive throaty howl exhaust sound. Custom Billet Compressor Wheel - 11-blade design provides a wide efficiency range allowing users to tow without risk of surge. 74 lbs/min of Air Flow vs 60 lbs/min stock.

New Assembly - No Core Charge. Fully Functional Exhaust Brake. Quick Spool-Up = Useable Horsepower.

Most Versatile Drop-In Turbo Option - Best blend of performance, drivability and towing capability. 12 month Warranty. This turbocharger features HFV technology!

HFV or High Flow Vane technology is Calibrated's proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring Calibrated's HFV upgrade are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.

This Turbo Is Designed for You If You:

Already have, or plan on installing custom tuning
Daily drive your truck
Have Reliability and Performance as top priorities
Tow with your truck
Want More Power and excellent street manners!

Do You Need an Actuator? If you're wondering whether or not you should buy an actuator to compliment your Stealth turbo, allow us to share our thoughts. The L5P actuator has a very low failure rate in the field.

The fact that it's well-cooled and not in close proximity to the hot parts of the turbo means that it's out of harm's way. Unless you're experiencing codes that indicate actuator issues or know for a fact that your actuator is somehow damaged, we would suggest saving your money and retaining your factory actuator.

Note: You should strongly consider custom tuning to go with this turbocharger upgrade. We have made up to 650 RWHP when matching this turbo with Emissions Compliant Tuning.

Features and Benefits:

Airflow to support 700HP*
*Up to 650 RWHP with Emissions Compliant Tuning and Basic Supporting Mods
41 psi Boost at Sea Level

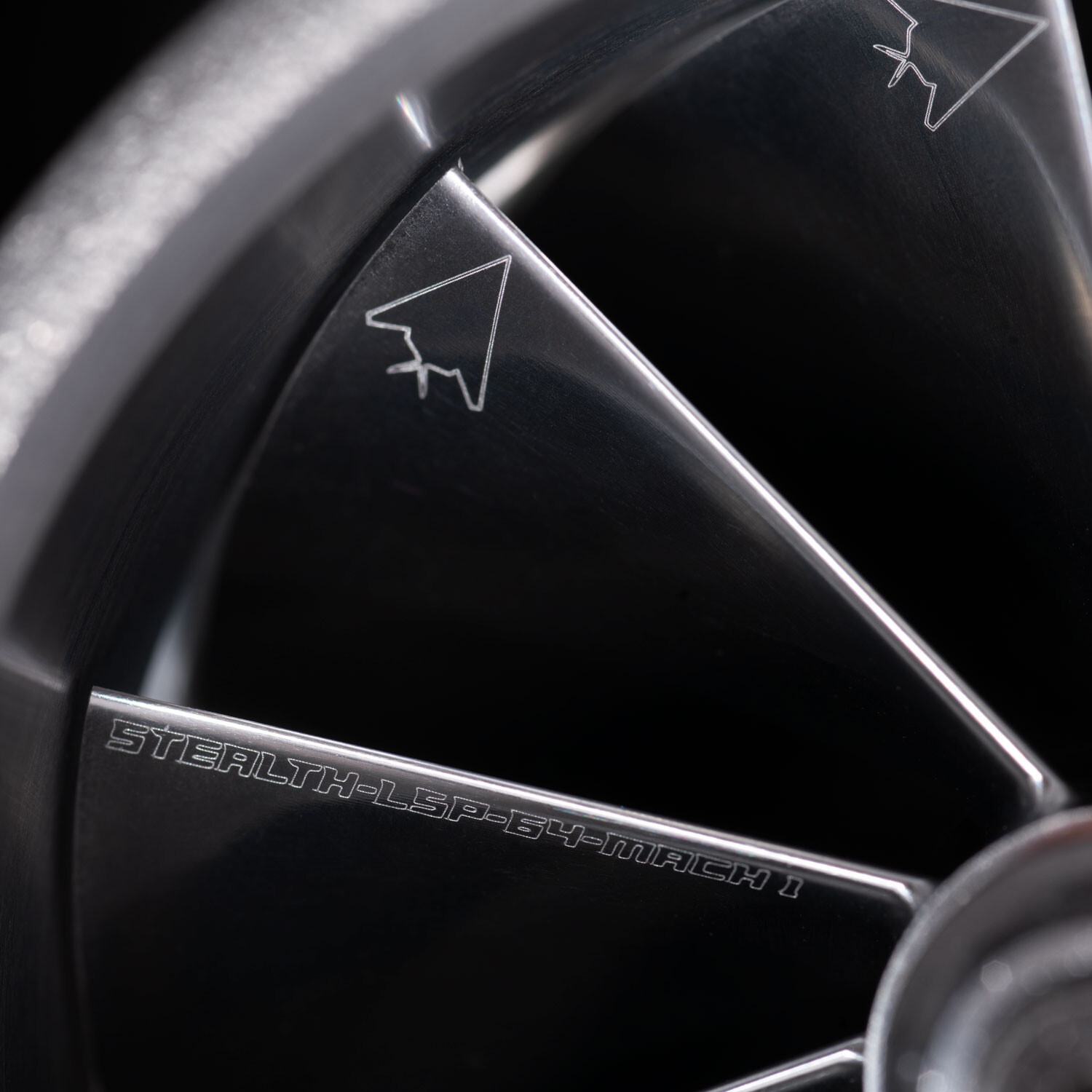

Custom Billet 64mm 11-Blade Compressor Wheel - Lightweight and High Strength - Wide Efficiency Range - Tow Without Risk of Surge
Provides 74 lbs/min Mass Airflow Compared to 60lbs/min Stock
Oversized Custom 10-Blade Turbine Wheel - Distinctive Exhaust Sound - Low Drive Pressures at High Load - Better EGT control.
HFV (High Flow Vane) Technology - Custom Vane/Nozzle Ring Assembly - Taller, Wider Vanes Match Larger Turbine for Superior High-Load Efficiency
Retain Factory Exhaust Brake, Quicker Throttle Response
Brand New Parts - No Core Charges
Actuator Sold Separately
